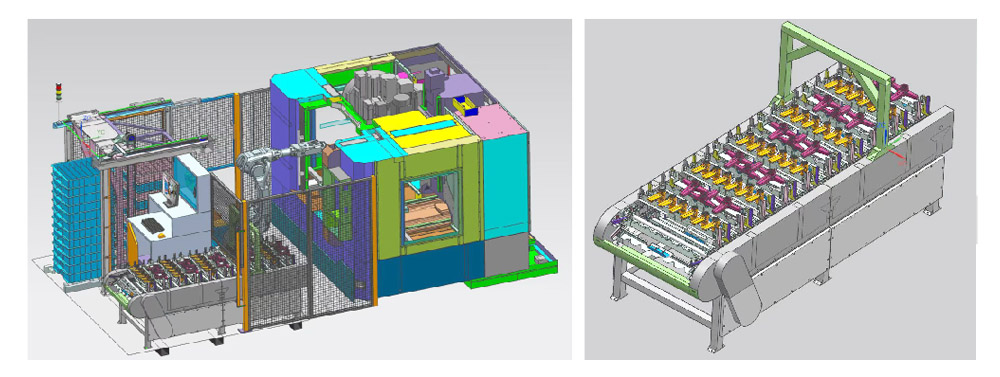

1、 Outline dimension of material storage unit: 2800 * 2350 * 2100mm

 2、 Silo

 ① Overall dimension: 2200 * 850 * 900mm

 ②. Number of silo supports (groups): 21

 ③Transmission motor: 0.75Kw+reducer

 ④Transmission mode: chain belt

 ⑤Product support shape: customizable according to customer requirements

 3、 Storage box unit

 ①. Single material storage box unit size: 485 * 600 * 120mm

 ②Total number of storage boxes: 24

 ③Transmission mode: belt transmission

 ④The internal price control size of the entire material box is 780 * 1500 * 1500mm

 ⑤The elevator feeding conveyor belt transmission method can be selected to visually locate and grasp the product.
